Tungsten vial shield

Model No.: JDTG-TS-025

Brand: ZZJD

Place Of Origin: China

Material: Tungsten

Density: 18.10±0.15g/cm³

Color: Natural

Size:

Option 1 External dimension: ø39*71mm

I.D:ø25*57mm

Thickness：6.5mm

Weight：Around 1.4Kg/pcs Option

2 External dimension: ø37*7mm

I.D:ø25*57mm

Thickness：4mm

Weight：Around 0.75Kg/pcs

Material: 95% Tungsten alloy

Density:18.1±0.15g/cm³

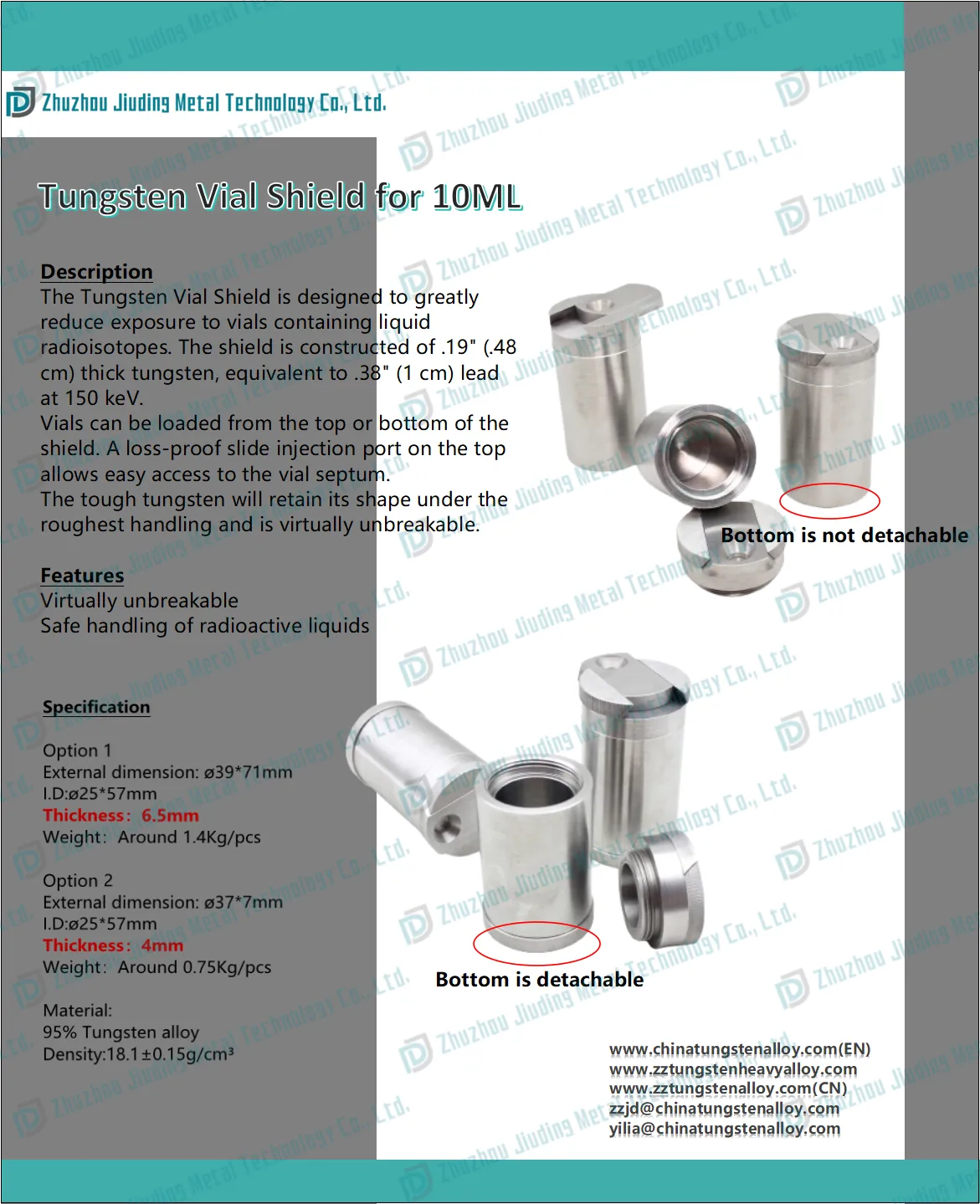

Tungsten Vial Shield for 10ML

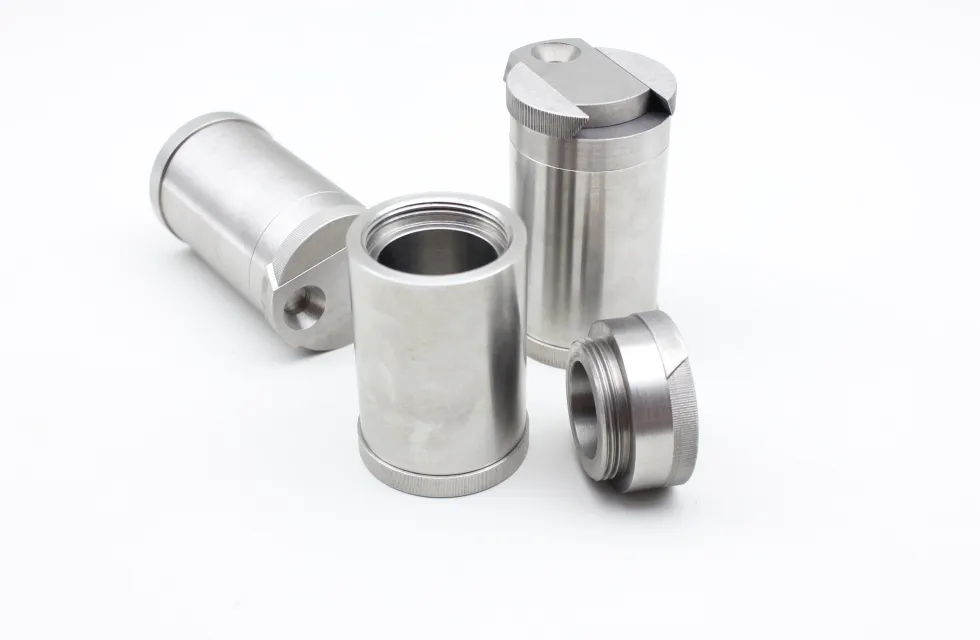

Our Tungsten Vial Shields are premium radiation protection containers specially designed for nuclear medicine departments, radiopharmacies, and PET/SPECT imaging laboratories. Engineered for safe storage, handling, and dose preparation of radioactive vials, these shields effectively block gamma ray radiation from common radioisotopes such as Tc-99m, F-18, I-131, and Ga-68. Replacing traditional lead shields, our tungsten alloy vial shields provide superior shielding performance with smaller volume, lighter weight, and eco-friendly properties, greatly reducing occupational radiation exposure for medical staff.

Description

The Tungsten Vial Shield is designed to greatly reduce exposure to vials containing liquid radioisotopes. The shield is constructed of .19" (.48 cm) thick tungsten, equivalent to .38" (1 cm) lead at 150 keV. Vials can be loaded from the top or bottom of the shield. A loss-proof slide injection port on the top allows easy access to the vial septum. The tough tungsten will retain its shape under the roughest handling and is virtually unbreakable. Features Virtually unbreakable Safe handling of radioactive liquids

Specification

Option 1 External dimension: ø39*71mm I.D:ø25*57mm Thickness：6.5mm Weight：Around 1.4Kg/pcs

Option 2 External dimension: ø37*7mm I.D:ø25*57mm Thickness：4mm Weight：Around 0.75Kg/pcs Material: 95% Tungsten alloy Density:18.1±0.15g/cm³
